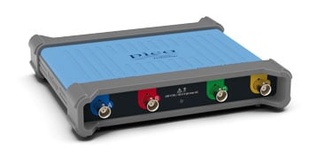

PicoScope 4424A 4 channel 20MHz USB 3
- 4 channel, 20 MHz bandwidth
- 12-bit resolution
- 256 MS capture memory
- 80 MS/s sampling rate
- 1% DC accuracy
- ±10 mV to ±50 V input ranges
- 10 000 segment waveform buffer
- 80 MS/s AWG update rate
- 14-bit resolution AWG
- SuperSpeed USB 3.0 interface
- Advanced digital triggering
- Serial bus decoding Details
| (ex. VAT) | € 1 325.00 |
| RRP | € 1 325.00 |
| Availability | On inquiry |
| Product code | PT_PQ289 |
Guarantee 24 months
Detailed Description PicoScope 4424A 4 channel 20MHz USB 3 manufacturers description
The PicoScope 4000A Series of PC oscilloscopes is a second-generation upgrade and expansion of our high-resolution, deep-memory product portfolio.
With 2-, 4- and 8-channel models available, the PicoScope 4000A Series boasts 12-bit hardware resolution (to 16 bits with Resolution Enhancement), 256 MS deep capture memory, 20 MHz bandwidth with 80 MS/s sampling speed, up to 70 dB SFDR and a built-in 14-bit triggerable signal generator and 80 MS/s AWG.
A SuperSpeed USB 3.0 interface powers the instrument and delivers up to 160 MS/s communications to the host PC. All models run with the popular PicoScope 6 user interface and benefit from the free PicoSDK software development kit, which gives users direct programming control of the hardware for custom applications. The scopes also work with PicoLog 6 data logging software for lower-speed long-duration captures.
