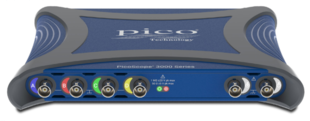

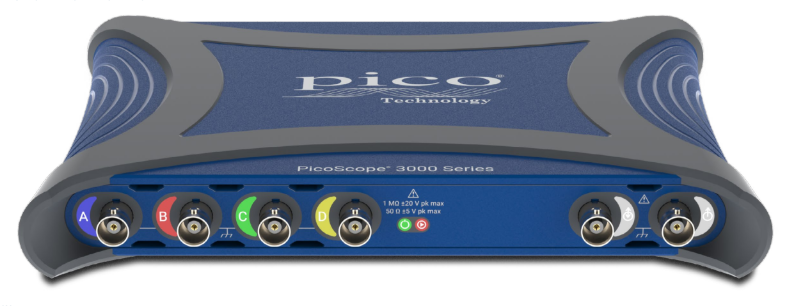

PicoScope 3415E 4 channel, 100 MHz, full kit with probes
- 100 MHz with 5 GS/s
- 10-bit resolution (14 bits using enhanced resolution)
- 2 GS ultra-deep capture memory
- Function/arbitrary waveform generator included
- Compact, portable and USB powered
- 40 serial protocol decoders included as standard
- Segmented memory, persistence and fast waveform updates
- Advanced math, measurements, masks and digital triggering
- PicoScope 7 for Windows®, Mac® & Linux® with free updates
- Support for LabView®, MATLAB® and writing your own code
More detailed specifications and dimensions of available models are specified in data sheet. Detailné informácie
| Cena bez DPH | € 1 745.00 |
| Cena s DPH | € 2 146.35 |
| Dostupnosť produktov | Na dotaz |
| Kód | PT_PQ357 |
Záruka 60 mesiacov
Detailný popis PicoScope 3415E 4 channel, 100 MHz, full kit with probes
Small, light and portable
Pico is once again redefining PC-based oscilloscopes with up to 500 MHz bandwidth and 5 GS/s in a compact, lightweight and portable, USB powered package.
The PicoScope 3000E Series is a range of USB-powered PC oscilloscopes offering 4 analog channels plus 16 digital logic analyzer channels on MSO models. PicoScope 3000E oscilloscopes provide high-performance specifications ideal for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or on the move.
The advanced PicoScope 7 software (Windows, Mac or Linux) is easy to use while offering high-end features including 40 serial decoders, mask limit testing and an array of advanced measurements and maths functions.
High bandwidth, high sampling rate, deep memory
The 500 MHz bandwidth is matched by a real-time sampling rate of 5 GS/s, enabling a detailed display of high-frequency signal detail.
The PicoScope 3000E Series offers an industry-leading 2 GS of capture memory which can be used to sample at 5 GS/s all the way down to 20 ms/div (200 ms total capture time). Alternatively, the memory can be split into segments to capture thousands of waveforms in quick succession into the waveform buffer.
A range of powerful tools allow you to make the most of this deep buffer memory. Easy-to-use zoom functions let you zoom and reposition the display by simply dragging with the mouse or touchscreen, mask tests can scan through 1000s of waveforms and DeepMeasureTM can make millions of measurements on a waveform to quickly identify areas to investigate.
SuperSpeed USB 3.0 interface and hardware acceleration ensure that the display is smooth and responsive while still letting you see every glitch in huge waveforms.
