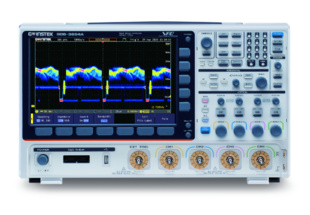

GW Instek GDS-3654A 650MHz, 4 channels, Digital Storage Oscilloscope

350MHz Bandwidth, 4 Input Channels
5GSa/s Real-time Sampling Rate(half channels); 2.5GSa/s Real-time Sampling Rate(all channels)
Per Channel 200Mpts Memory Depth
200,000 wfm/s of Waveform Update Rate
10.2 inch 800*480 TFT LCD Display
490,000 Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length
38 Automatic Measurement Functions Offers Various Measurement Selections
High resolution acquisition mode
I2C/UART/CAN/LIN Serial bus trigger and decoding functions
Dual Channel Spectrum analyzer (DC~2.5GHz) with spectrogram
Dual Channel 25MHz Arbitrary Waveform Generator
Optional 13 sets power analysis measurement
Optional 16 digital channel with Logic analyzer(MSO)

More detailed specifications and dimensions of available models are specified in data sheet. Detailné informácie

Ďalšie produkty v kategórii

Cena bez DPH	€ 6 571.00
Cena s DPH	€ 7 885.20
ks
Dostupnosť produktov	Na dotaz
Kód	GW_GDS-3654A

Súvisiace produkty

Produktová stránka výrobcu

Detailný popis
K stiahnutiu

Detailný popis GW Instek GDS-3654A 650MHz, 4 channels, Digital Storage Oscilloscope

The GDS-3000A series is the flagship product of GW Instek's new generation digital storage oscilloscope. Its highest frequency bandwidth has been elevated to 650MHz, and the 350MHz model is also available. The memory depth of each channel is up to 200Mpts.

The sampling rate is 5GSa/s interleaved. The display is 10.2" TFT LCD and the RGB display output is 8 bits each, allowing users to clearly analyze the strength distribution of the measured signal. The models include two-channel and four-channel selections and an optional 16-channel logic analyzer.

GDS-3000A is equipped with a standard dual-channel 25MHz arbitrary waveform generator. Users can select the arbitrary waveform function to store the signal measured by the analog channel or directly output it from the signal generator.

This function allows users to conveniently generate various types of measured signals to simulate diversified signal outputs. The frequency response analysis function (Bode Plot) is also equipped, which can be applied to product circuit and component characteristic verification and analysis, including RLC circuit design, filter design and amplifier design verification and analysis.
