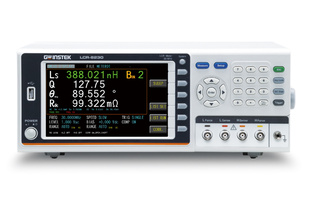

GW Instek LCR-8230 (CE) High-Frequency LCR Meter 10Hz-30MHz

Wide Test Frequency: DC, 10Hz - 30MHz
7” LCD color Display
0.08% Basic Accuracy
Displaying Four Measurement results simultaneously from 17 selectable measurement parameters freely
15 steps List Measurement
Two Curves Sweep Mode
Internal DC Bias Voltage ±12V
USB Storage available
ALC function available
Standard Interfaces : RS-232C, USB host/device, LAN, GPIB and Handler

Cena s DPH	na vyžiadanie
Dostupnosť produktov	Na dotaz
Kód	GW_LCR-8230
ks

Súvisiace produkty

Záruka 24 mesiacov

Produktová stránka výrobcu

Detailný popis
K stiahnutiu

Detailný popis GW Instek LCR-8230 (CE) High-Frequency LCR Meter 10Hz-30MHz

GW Instek launches a new series of high-frequency LCR meter ~ LCR-8200, which has five models and the maximum test frequency is up to 30MHz. The entire series adopts 7-inch color display and features a high measurement accuracy (0.08%). The measurement results can be presented numerically or graphically according to the selected measurement mode, allowing users to optimally interpret the characteristics of the DUT.

At the same time, a full range of standard interfaces such as USB device / RS-232C / Handler and GPIB allow users to control the instrument by the most familiar interface without worrying about additional hardware investment costs. Furthermore, the series also provides USB storage function when operating in the graphics mode. The measured characteristic curves and values of the DUT are saved for subsequent analysis. The wide variety of features of the LCR-8200 can help users easily respond to the test requirements of passive components in R&D, engineering, and production.
