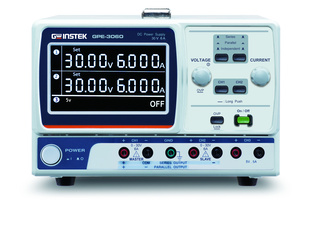

GW Instek GPE-3060 3-channel, 385W linear DC power supply


  • 1/2/3 independent isolated output channels
  • GPE-3060 provides CH1/CH2: 0 ~ 30V / 0 ~ 6A output; CH3 supports 1.8V, 2.5V, 3.3V, 5.0V at 5A
  •
  • Series/parallel tracking function
  •
  • High program resolution of 10mV/1mA and measurement resolution of 30mV/10mA
  •
  • Output On/Off function
  •
  • Simple analog control interface
  •
  • Multiple protection apparatuses such as overvoltage and overload protection functions

More detailed specifications and dimensions of available models are specified in data sheet. Details

(ex. VAT) € 637.00
RRP € 637.00
 Pc
Availability On inquiry
Product code GW_GPE-3060

Guarantee 24 months

Detailed Description GW Instek GPE-3060 3-channel, 385W linear DC power supply manufacturers description

The GPE-3060/6030 launched by GW Instek are high-resolution linear DC power supplies. Their primary aim is to replace the existing GPC-3060D/ 6030D models. The GPE-3060/6030 deliver 385 watts of output power and feature three independent isolated output channels. The GPE-3060 offers CH1/CH2 outputs of 0 to 30V and 0 to 6A, while the GPE-6030 supports CH1/CH2 outputs of 0 to 60V and 0 to 3A. Both models feature CH3 outputs of 1.8V, 2.5V, 3.3V, and 5.0V at 5A.

With respect to high program resolution, GPE-3060 provides 10mV/2mA and GPE-6030 offers 20mV/1mA. GPE-3060/6030 adopts a new hybrid power supply design, which can save 13% of power consumption compared with the wattage of the conventional linear power supplies, and the volume and weight are significantly reduced.
