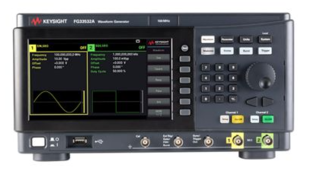

Keysight FG33532A Waveform generator, 100 MHz, 2-channel with arb

Maximum frequency 100 MHz
Number of channels 2
Standard Sine, square, ramp, pulse, triangle, Gaussian noise, pseudorandom binary sequence (PRBS), DC
Built-in arbitrary Cardiac, exponential fall, exponential rise, Gaussian pulse, Haversine, Lorentz, D-Lorentz, negative ramp, sinc
User-defined arbitrary Up to 8 MSa (16 MSa with Option MEM)
Operating modes Continuous, modulate, frequency sweep, counted burst, gated burst
Modulation types Amplitude Modulation (AM), Frequency Modulation (FM), Phase Modulation (PM), Frequency Shift Keying (FSK), Binary Phase Shift Keying (BPSK), Pulse Width Modulation (PWM), sum (carrier + modulation)

Two-channel characteristics (FG33532A only)

Operating modes Independent, coupled parameter(s), combined (Channels 1 and 2); equal (Channel 1 = Channel 2) or differential (Ch 1 = -Ch 2)
Relative phase 0° to 360°, 0.1° resolution
Channel-to-channel skew (typical); both channels configured identically < 0.8 ns >
Crosstalk (typical) < -75 dB >

More detailed specifications and dimensions of available models are specified in data sheet. Detailné informácie

Ďalšie produkty v kategórii

Cena bez DPH	€ 1 976.00
Cena s DPH	€ 2 430.48
ks
Dostupnosť produktov	Skladom
Kód	FG33532A

Súvisiace produkty

Záruka 36 mesiacov

Produktová stránka výrobcu

Detailný popis
K stiahnutiu

Detailný popis Keysight FG33532A Waveform generator, 100 MHz, 2-channel with arb

Perform accurate hardware design validation using Keysight Smart Bench Essentials Plus FG33530 series function / waveform generators, equipped with pro-level technology from advanced models. Trueform technology employs a virtual variable clock with advanced filtering techniques to track the waveform’s sample rate. The technology gives you predictable low jitter, low harmonic distortion, and high signal integrity to deliver a true representation of your programmed waveform. The FG33530 series also comes with built-in 16-bit arbitrary waveform generation capabilities and waveform builder software.

Similar to all products in the Smart Bench Essentials Plus family, it comes with a three-year warranty and KeysightCare technical support to de-risk your project. The FG33530 series function / waveform generators enable you to:

View and edit signal, or set up parameters simultaneously on a 7-inch color display.

Achieve jitter of less than 50 ps.

Maintain total harmonic distortion of less than 0.06%.

Enable 16-bit arbitrary waveform capability with up to 16 M samples per channel memory.

Simulate typical test applications with six built-in modulation types and 17 popular waveforms.
