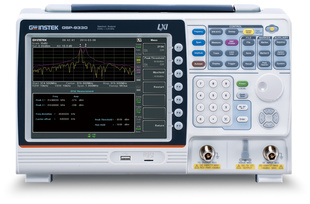

GW Instek_GSP-9330TG 3.25GHz Spectrum Analyzer, Tracking Generator
- Frequency Range: 9kHz - 3.25GHz
- 0.025ppm Frequency Stability and 1ppm aging Rate
- RBW: 1Hz - 1MHz (3dB), 6dB EMI Filter: 200Hz, 9kHz, 120kHz, 1MHz
- Fastest sweep time: 204us
- Sensitivity: -149 dBm/Hz (@PreAmp on)
- Built-in Preamplifier, 50dB Attenuator, and Sequence Function
- Built-in EMC pretest function, Quasi-Peak/Average EMI detect mode
- Built-in 2FSK Analysis, AM/FM/ASK/FSK Demodulation & Analysis
- Built-in P1dB point, Harmonic, CHPW, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, N-dB bandwidth, Noise Marker, Frequency Counter, TDP, Gated Sweep
- Built-in Spectrogram, Topographic and Split-Window Display Modes
- Remote control EMI measurement software: SpectrumShot
- Remote Control Interface: LAN, USB, RS-232
- Options: GPIB Interface, Battery Pack Detailné informácie
| Cena bez DPH | € 6 476.00 |
| Cena s DPH | € 6 476.00 |
| Dostupnosť produktov | Na dotaz |
| Kód | GW_GSP-9330TG |
Záruka 24 mesiacov
Detailný popis GW Instek_GSP-9330TG 3.25GHz Spectrum Analyzer, Tracking Generator
The brand new GSP-9330, a high test speed spectrum analyzer with 3.25 GHz, provides the fastest 204 μs sweep speed. Users, via high speed sweep time, can easily handle and analyze modulation signals. The keys to handling modulated signals are fast sweep time and signal demodulation functions. In addition to the analog AM/FM demodulation and analysis function, GSP-9330 also provides digital signal ASK/FSK, and 2FSK demodulation and analysis capabilities. Nowadays, EMC issues are very crucial to product's design processes. Therefore, GSP-9330 has incorporated the EMC pretest solution to facilitate EMC tests. The simple and easy EMC pretest procedures from GSP-9330 can tremendously shorten users' product launch timeline.
