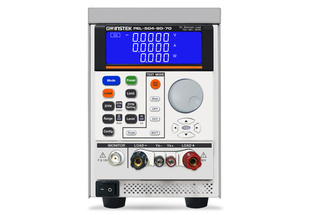

GW Instek PEL-504-80-70 DC electronic load 350W, 70A, 80V

5-digit digital voltage, current and power meter
Simultaneous display of voltage, current, and watts
Short-circuit time can be set during short-circuit test
Automatic test function of overcurrent protection/overpower protection
The battery discharge test function can set the discharge stop voltage (Vbatt), discharge capacity (AH, WH) and stop discharge time.
Surge test can simulate boot overshoot current and transient current from hot plugging.
Constant current, constant resistance, constant voltage, constant power and Dynamic mode
Overvoltage, overcurrent, over power, over temperature protection and reverse polarity detection
Voltage polarity display can be set to positive value ("+") or negative value ("-")
Communications interface: RS232, USB

(ex. VAT)	€ 1 280.00
RRP	€ 1 280.00
Pc
Availability	On inquiry
Product code	GW_PEL-504-80-70

Compare products

Guarantee 24 months

Manufacturer's product page

Detailed information
Videos and downloads

Detailed Description GW Instek PEL-504-80-70 DC electronic load 350W, 70A, 80V manufacturers description

The PEL-500 series single-channel electronic load has a total of 5 models and provides 0~80V/ 0~500V voltage operating ranges and 250~700W power operating range. The series can be applied to R&D, quality control, ATE system and production test, including voltage source/current source test; switching power supply transient response; constant voltage mode for current limiting test; battery simulation; and battery discharge test.
