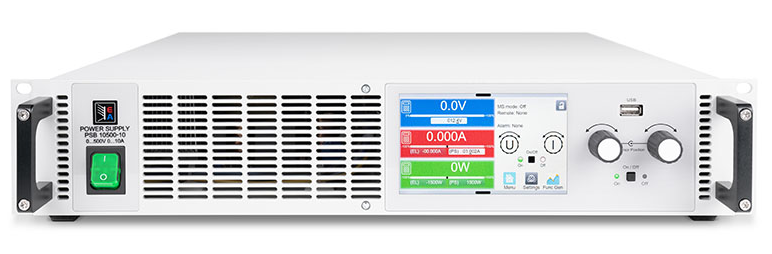

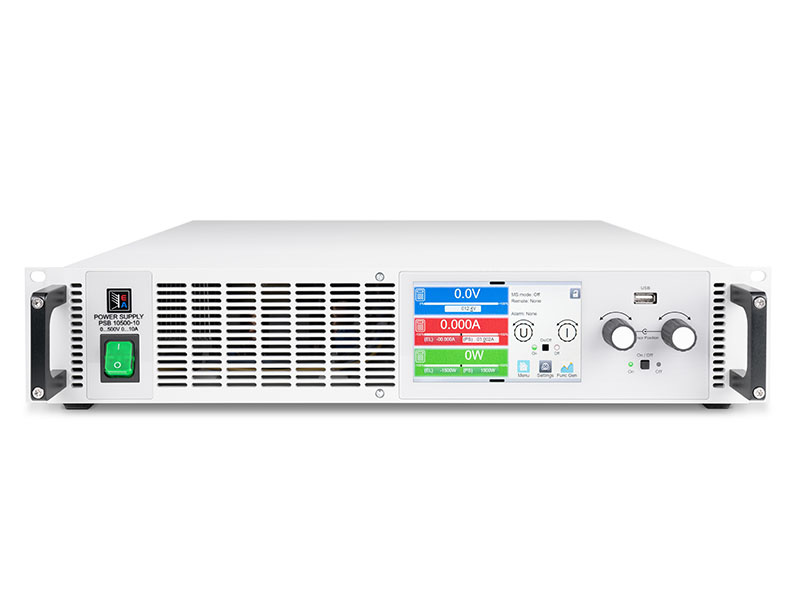

Elektro-Automatik PSB 10750-06 2U 1500W

EA PSB-10000 2U Series features:

Wide range input, 110 V - 240 V +-10 % 1ph AC
Active Power-Factor-Correction, typical 0.99
Bi-directional power supply, 2-quadrants in source and sink
In load operation, regenerative with energy recovery into the grid
Very high efficiency up to over 95%
Voltage from 0 - 10 V up to 0 - 1500 V
Currents from 0 - 6 A up to 0 - 120 A
Flexible power regulated DC input/output stages (autoranging)
Regulation mode CV, CC, CP, CR with fast crossover
Digital regulation, high resolution with 16bit ADCs and DACs
Color 5“ TFT display with touch control and intuitive user interface
Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series
Master-Slave bus for parallel operation of up to 64 units of all power classes in the 10000 series
Integrated function generator with pre-defined curves
Pre-defined automotive test procedures for LV123, LV124 and LV148
Integrated battery test mode, battery and fuel cell simulation
Photovoltaic test mode, MPPT, EN50530
Built-in interfaces: USB, Ethernet, Analog, USB Host, Master-Slave-Bus, Share-Bus

Detailné informácie

Ďalšie produkty v kategórii

Cena bez DPH	€ 5 200.00
Cena s DPH	€ 6 396.00
ks
Dostupnosť produktov	Na dotaz
Kód	EA_30000725

Záruka 24 mesiacov

Produktová stránka výrobcu

Detailný popis
K stiahnutiu

Detailný popis Elektro-Automatik PSB 10750-06 2U 1500W

The bi-directional DC laboratory power supplies in the PSB 10000 series from EA Elektro-Automatik are 2-quadrant devices which can preform the function of power supply as well as that of an electric load.
